Operator PTT
OPERATOR PTT

R6-PTT-STD

Operator PTT with fixed 6 pin/U-329 down lead

R6-PTT-STD-ICS

Dual down lead Operator PTT with fixed 6 pin/U-329 connector and aircraft/vehicle ICS connector

R6-PTT-STD-DUAL

Operator PTT with dual fixed 6 pin/U-329 down leads

R6-PTT-MOD

Operator PTT with modular down lead connector. Requires a PTT-MOD down lead in order to connect to a device.
PTT SWITCH OPTIONS

R6-PTT-xxx

Standard switch on all PTT's

R6-PTT-xxx-HM

'No key' hot mic guard for any PTT

R6-PTT-xxx-WP

Button/switch waterproof cover for any PTT

R6-PTT-xxx-PA

U94 waterproof boot for any PTT
PTT-STD DOWN LEAD VARIATIONS

R6-PTT-STD-10P

Operator PTT with fixed 10 pin/Maritime down lead

R6-PTT-STD-APX/XTS/SRX

Operator PTT with fixed Motorola APX, XTS, or SRX down lead (specify one when ordering). Compatible with Motorola APX/XTS/SRX series radios.
PTT-MOD DOWN LEAD VARIATIONS

R6-PTT-MOD-U329

Modular down lead terminated with a 6 pin/U-329 connector

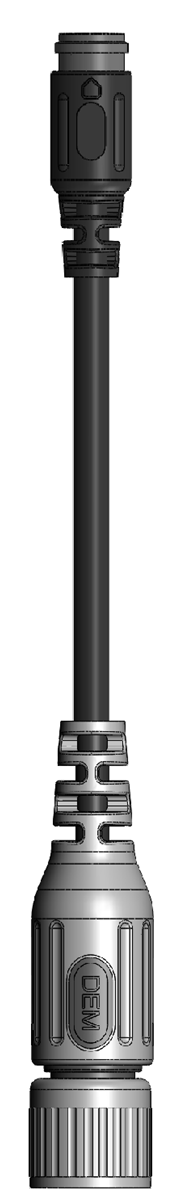

R6-PTT-MOD-10P

Modular down lead terminated with a 10 pin/Maritime connector

R6-PTT-MOD-APX/XTS/SRX

Modular down lead terminated with a APX, XTS, or SRX connector (specify one when ordering). Compatible with Motorola APX/XTS/SRX series radios.

R6-PTT-AOS

Modular down lead for Android phones with a 3.5mm headphone jack. Requires one AA battery to operate properly.

R6-PTT-MOD-CCS

Coiled Cable Splice with modular connector. The most common coil length is 9”. When fully extended/stretched, all coils are approximately 4 times their length.

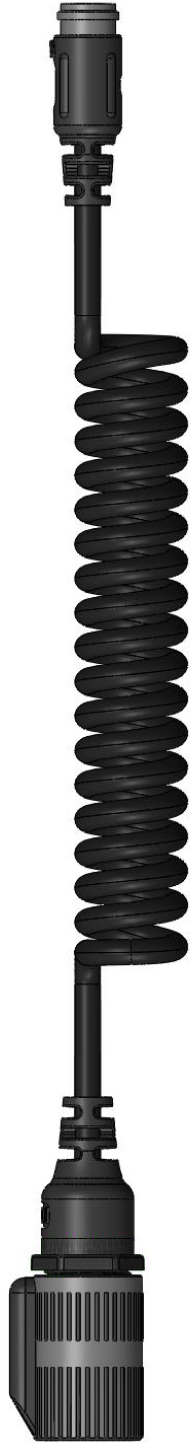

R6-PTT-MOD-CCS-U329

Coiled Cable Splice with 6 pin/U-329 connector. The most common coil length is 9”. When fully extended/stretched, all coils are approximately 4 times their length.
PTT ADAPTERS

R6-PTT-ADAPT-2PIN

2 pin adapter for CBRNE, HAHO, etc. Connect to the top of any R6 PTT and your mask to TX via your mask mic.

R6-PTT-ADAPT-2PIN-FIXED

2 pin adapter with fixed cable for CBRNE, HAHO, etc. Connect to the top of any R6 PTT and your mask to TX via your mask mic.
ADDITIONAL NOTES & MEASURING GUIDE

- All down lead lengths are cut to customer specification, see measurement guide below
- Add ‘-HM’, ‘-WP’, or ‘-PA’ as needed to the end of any part number (PN) when ordering (e.g. PTT-MOD-HM, PTT-STD-10P-HM-WP)
- ALL parts can be ordered in black or tan, specify at the time of order
- All orders come with a 1-year repair or replacement warranty
